Appello Protocol Implementation Guide
The Appello Protocol represents a sophisticated, highly optimized telematics communication standard designed for high-reliability asset tracking and advanced fleet monitoring operations across diverse industrial environments. Operating natively on network server Port 5109, running hardware tracking terminal units under the unified appello gps trackers engine guarantees absolute real-time data packet validation, secure synchronization fields, and superior multi-sensor data logging stability maps for global safety layers seamlessly.
This implementation guide provides a deep technical dive into the hardware architecture, terminal wiring configurations, and the industrial SMS command set required to authorize, configure, and control Appello-enabled devices.
By integrating advanced cellular network connectivity links with adaptive triple-mode positioning engines (combining high-precision GPS, local LBS base stations, and WiFi location mapping triangulation), Appello hardware units deliver unparalleled asset visibility and remote digital immobilizer relay capabilities perfectly tailored for modern B2B fleet logistics protection tiers.
1. Device Comparison Specifications: Appello 4P vs. 5109
Deploying remote hardware modules within a centralized asset tracking ecosystem requires a definitive cross-examination of power source fields and distinct water resistance ratings. Review the completed hardware properties table below:

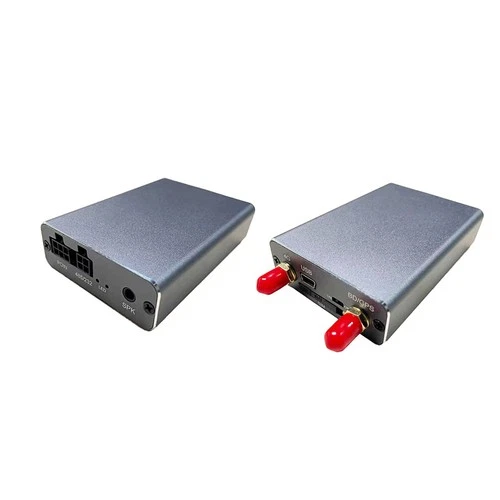

| Technical Feature | Appello 4P (Wireless Pet / Asset Tag) | Appello 5109 (Wired Vehicle / Fleet Terminal) |
|---|---|---|
| Power Range | Internal Battery Cache (Supports Wireless Charging) | 9V - 95V DC High Voltage Range (Hardwired) |
| Dimensions | Small, Ultra-Compact Collar-ready Casing | 87mm x 50mm x 12mm Slim Enclosure |
| Standby Mode | Up to 12 Months (Autonomous Deep Sleep Optimization) | Continuous Logging (Vehicle Battery Dependent Feeds) |
| Engine Immobilizer | No Support Available | Yes Supported (Via External Interrupter Relay) |
| Water Resistance | IP65 Rated Environmental Enclosure | Industrial Grade Structural Rugged Casing |
2. Appello 5109 Wiring Diagram & Mechanical Relay Setup
For standard hardwired vehicle deployments, executing physical electrical connections matching the exact multi-wire harness pin distribution rules guarantees long-term telematics stability. Secure all splicing connections carefully based on these parameters:
[BLACK WIRE] ----(-)----> Main System Power Ground Connected to Chassis Earth
[ORANGE WIRE]----(IN)---> ACC Ignition Switch Sense Line to Track Trip Profiles
[YELLOW WIRE]----(OUT)--> External Automotive Relay Pin 86 (Negative Driver Latch Control Signal)
Visual Relay Electrical Flowchart (Automated Fuel/Power Cut Loop):
↓ (Dispatches Negative Latch Trigger)
● Automotive Relay Pin 86 Latch Interface (Coil Electromagnetic Input)
↓ (Breaks Internal Continuity Points)
● Automotive Relay Pin 30 & Pin 87a Spliced Series Links (Connected to Vehicle Fuel Pump Positive Wire)
↓ (Autonomous Mechanical Cut Execution)
● Circuit Breaks completely and halts engine starter loops whenever the encrypted machine command string "555" is parsed.
3. Industrial SMS Command Library Configuration Reference
Provision your data terminal nodes remotely by transmitting the following explicit structure machine code scripts to the tracking terminal SIM card slot number. The standard factory default master security password token is 123456.
Initial Provisioning Connection Commands Setup:
● Set Network Operator APN Access Profile: apn123456 [YourCarrierAPN]
● Set Central Server IP Address & Destination Listening Path: adminip123456 [IP] [Port]
Advanced Operational Remote Control & Status Query Matrix (Port 5109):
| Telemetry Function | SMS Command Syntax | Device Expected Return Response |
|---|---|---|
| Instant Location Query | G123456# | Google Maps HTTP URL link + raw Lat/Long coordinates |
| Cut Engine (Relay ON Latch) | 555 | "Stop engine Succeed" text prompt |
| Resume Engine (Relay OFF Release) | 666 | "Resume engine Succeed" text prompt |
| Configure Heartbeat Pulse | hbt123456 5 | Sets automated keep-alive heartbeat interval every 5 minutes |
| Hardware Soft Reset Loop | CQ | "System Reset OK" |
| Real-Time Status Check | CXZT | Returns battery cell %, GSM signal bars, and 3D GPS lock states |
Troubleshooting Appello Protocol GPS Socket Timeouts
When an active telematics hardware tracking device working under the appello gps trackers engine profile drops its cloud routing sessions or appears offline on your monitoring system workspace map, check your backend firewall configurations rules. Ensure that inbound cellular packet traffic targeting Port 5109 (TCP sessions) is completely unblocked and whitelisted at your web server infrastructure firewall instance layer templates safely. Most payload timeouts stem from mismatched asset unique IMEI identification profiles, invalid operator APN strings, or temporary regional base tower handshake dropouts. Transmitting a manual system diagnostic query text string via cellular network SMS gates will instantly flush the hardware localized internal memory buffers queues and force the communication module to re-authenticate its tracking stream lines cleanly.
